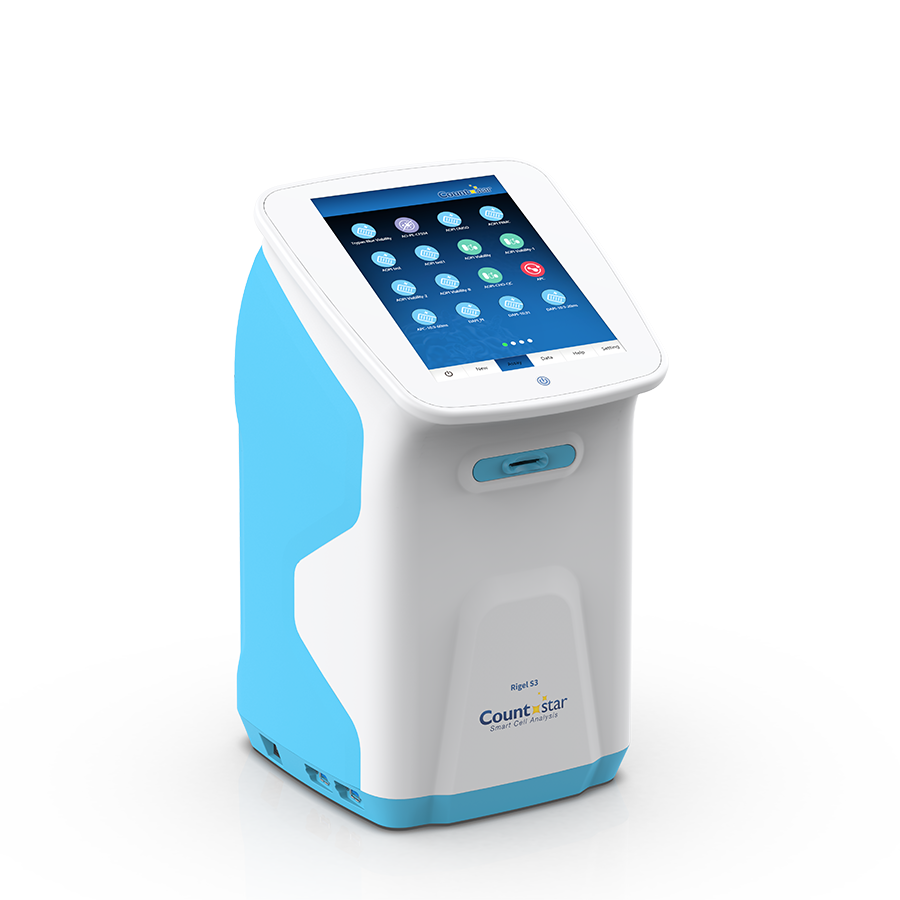

The Countstar Rigel S3 combines three fluorescence excitation wave-lengths with three detector filters, offering a bright field view as a plus. The analyzer integrates functionalities of an image cytometer, a digital microscope, and an automated cell counter in a bench-top instrument. This application-driven, compact and automated imaging cell analyzer provides a universal platform for cell density and viability determination, Apoptosis monitoring, CD-marker phenotyping and many more test scenarios, that can be added by a new individual, customizable BioApps, tailored to the characteristics of those dyes, compatible to the available excitation and detector wavelengths. The BioApps simplify routine, cellular-based laboratory tasks, making them more reliable, and saving time to focus on other, important works in the lab or production.
Excitation wavelengths: 375nm, 480nm, and 525nm
Emission filters: 480/50nm, 535/40nm, and 600nmLP
Extract of Range of Applications
- Cell density and viability monitoring
- Characterization of whole blood samples
- PMBC-isolation efficiency check
- Monitoring the culture status of T-lymphocytes
User Benefits
- Image based, alternative design to complex flow cytometry
- Fast analysis of various parameters in parallel
- Flexible, modifiable platform with a minimized footprint
Technical Features
- Automated, consecutive test sequence of up to 5 samples
- Three fluorescent channels and a bright-field image were acquired and analyzed in parallel
- Unrivaled, patented “Fixed Focus Technology” makes focusing obsolete
- Compliant to FDA’s 21 CFR Part 11 operation
- Optional export of images and results to DeNovo™ FCS express image software
- Trypan blue channel integrated for classical cell counting
